Umi Ø200

상품 선택옵션 0 개, 추가옵션 0 개

DXX-55
■ SPECIFICATION

MATERIAL

AL. Die-Casting

ACCESSORY

PC diffuser/Pure AL.optical reflector

BEAM ANGLE

85°

REFLECTOR COLOR

Chrome/ Black/ White/ Silver

BODY COLOR

WHITE

LIGHT SOURCE

SMD LED(by OSRAM Duris E2835)

COLOR RENDERING INDEX

min. 80 Ra

COLOR TEMPERATURE

3000K / 4000K / 5700K

INPUT VOLTAGE

220-240V AC , 50/60Hz

OUTPUT POWER

20W / 30W / 35W / 40W

OUTPUT VOLTAGE

36V DC

OUTPUT CURRENT

500mA / 700mA / 800mA / 900mA

SYSTEM EFFICIENCY

100 lm/w(3000K)

LUMINOUS FLUX

2000 lm/ 3000 lm/ 3500 lm/ 4000 lm

OP. TEMPERATURE RANGE

-20 to +40

LIFE TIME

Up to 50,000 hours

SMPS OPTION

ON OFF/ DALI/ TRIAC/ 0-10V/ 1-10V

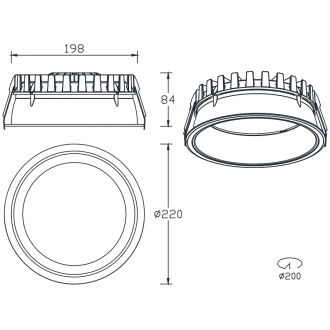

참고 도면이미지
