Bants Ø75

상품 선택옵션 0 개, 추가옵션 0 개

01-082
■ SPECIFICATION

MATERIAL

AL. Die-Casting

REFLECTOR

LENS(PMMA)

BEAM ANGLE

15° / 24° / 36°/ 50°

BODY COLOR

WHITE

REFLECTOR COLOR

White/ Black/ Chrome/ Silver/ Gold

LIGHT SOURCE

COB LED(CHIP ON BOARD)

COLOR RENDERING INDEX

80 Ra / 90 Ra

COLOR TEMPERATURE

2700K/ 3000K/ 3500K/ 4000K/ 5700K

INPUT VOLTAGE

220-240V AC , 50/60Hz

OUTPUT POWER

10W/ 15W

OUTPUT VOLTAGE

36V DC

OUTPUT CURRENT

250mA/ 350mA

SYSTEM EFFICIENCY

100 lm/w(3000K)

LUMINOUS FLUX

1000 lm/ 1500 lm

OP. TEMPERATURE RANGE

-20 to +40

LIFE TIME

Up to 50,000 hours

SMPS OPTION

ON OFF/ DALI/ TRIAC/ 0-10V/ 1-10V

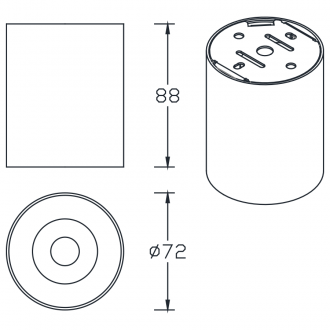

참고 도면이미지
