Astoria

상품 선택옵션 0 개, 추가옵션 0 개

01-078
■ SPECIFICATION

MATERIAL

AL. Die-Casting

REFLECTOR

AL. Anodized

BEAM ANGLE

25° / 36° / 60°

REFLECTOR COLOR

DARK BLACK/ CHROME/ GOLD/ COPPER

BODY COLOR

WHITE / BLACK

LIGHT SOURCE

LED COB(CHIP ON BOARD)

COLOR RENDERING INDEX

80 Ra / 90 Ra

COLOR TEMPERATURE

2700K/ 3000K/ 3500K/ 4000K/ 5700K

INPUT VOLTAGE

220-240V AC , 50/60Hz

OUTPUT POWER

10W

OUTPUT VOLTAGE

36V DC

OUTPUT CURRENT

250mA

SYSTEM EFFICIENCY

100 lm/w(3000K)

LUMINOUS FLUX

1000 lm

OP. TEMPERATURE RANGE

-20 to +40

LIFE TIME

Up to 50,000 hours

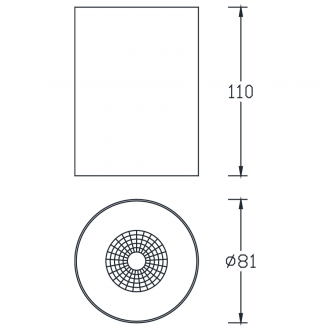

참고 도면이미지
