04-570
■ SPECIFICATION

MATERIAL

AL. Die-Casting

REFLECTOR

LENS(PMMA)

BEAM ANGLE

16° / 24° / 35°

BODY COLOR

BLACK / WHITE

LIGHT SOURCE

LED COB(CHIP ON BOARD)

COLOR RENDERING INDEX

80 Ra / 90 Ra

COLOR TEMPERATURE

3000K/ 4000K/ 5000K

INPUT VOLTAGE

220-240V AC , 50/60Hz

OUTPUT POWER

10W / 15W

OUTPUT VOLTAGE

36V DC

OUTPUT CURRENT

250mA / 350mA

SYSTEM EFFICIENCY

100 lm/w(3000K)

LUMINOUS FLUX

1000 lm / 1500 lm

OP. TEMPERATURE RANGE

-20 to +40℃

LIFE TIME

Up to 50,000 hours

OPTION

ON OFF / TRIAC

TRACK OPTION

1-CIRCUIT / 3-CIRCUIT

ACCESSORY

Honeycomb louver

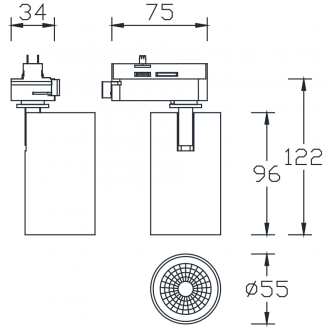

참고 도면이미지
