M65 Ø55

상품 선택옵션 0 개, 추가옵션 0 개

02-377
■ SPECIFICATION

MATERIAL

AL. Die-Casting

ACCESSORY

Cover PC

BEAM ANGLE

60°

BODY COLOR

WHITE

LIGHT SOURCE

SMD LED(by OSRAM Duris E2835)

COLOR RENDERING INDEX

min. 80 Ra

COLOR TEMPERATURE

3000K / 4000K / 5000K

INPUT VOLTAGE

220-240V AC , 50/60Hz

OUTPUT POWER

6W / 8W

OUTPUT VOLTAGE

36V DC

OUTPUT CURRENT

150mA / 180mA

SYSTEM EFFICIENCY

100 lm/w(3000K)

LUMINOUS FLUX

600 lm / 800 lm

OP. TEMPERATURE RANGE

-20 to +40

LIFE TIME

Up to 50,000 hours

SMPS OPTION

ON OFF/ DALI / TRIAC / 0-10V / 1-10V

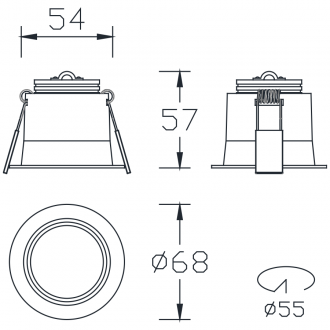

참고 도면이미지
