RATA Ø95 "NOT IN STOCK"

상품 선택옵션 0 개, 추가옵션 0 개

02-364
■ SPECIFICATION

MATERIAL

AL. Die-Casting

REFLECTOR

LENS(PMMA)

BEAM ANGLE

24° / 36°

BODY COLOR

WHITE

LIGHT SOURCE

LED COB(CHIP ON BOARD)

COLOR RENDERING INDEX

80 Ra / 90 Ra

COLOR TEMPERATURE

2700K/ 3000K/ 3500K/ 4000K/ 5700K

INPUT VOLTAGE

220-240V AC , 50/60Hz

OUTPUT POWER

10W / 15W / 20W / 25W

OUTPUT VOLTAGE

36V DC

OUTPUT CURRENT

250mA / 350mA / 500mA

SYSTEM EFFICIENCY

100 lm/w(3000K)

LUMINOUS FLUX

1000 lm / 1500 lm / 2000 lm

OP. TEMPERATURE RANGE

-20 to +40

LIFE TIME

Up to 50,000 hours

SMPS OPTION

ON OFF/ DALI / TRIAC / 0-10V / 1-10V

ACCESSORY

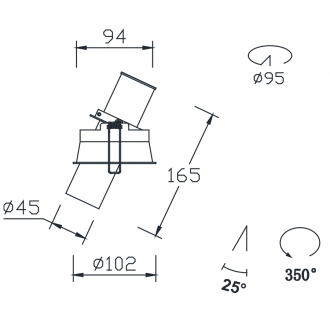

참고 도면이미지
