IP54 75Ø SMD 매입

상품 선택옵션 0 개, 추가옵션 0 개

02-366 Model C
■ SPECIFICATION

IP RATING

IP 54

MATERIAL

AL. Die-Casting

REFLECTOR

Softening PC cover

BEAM ANGLE

85°

BODY COLOR

WHITE

LIGHT SOURCE

SMD LED

COLOR RENDERING INDEX

90 Ra

COLOR TEMPERATURE

3000K / 4000K / 5700K

INPUT VOLTAGE

220-240V AC , 50/60Hz

OUTPUT POWER

6W / 8W / 10W

OUTPUT VOLTAGE

36V DC

OUTPUT CURRENT

180mA / 200mA / 250mA

SYSTEM EFFICIENCY

100 lm/w(3000K)

LUMINOUS FLUX

600 lm / 800 lm / 1000 lm

OP. TEMPERATURE RANGE

-20 to +40

LIFE TIME

Up to 50,000 hours

OPTION

DALI / TRIAC / 0-10V / 1-10V

ACCESSORY

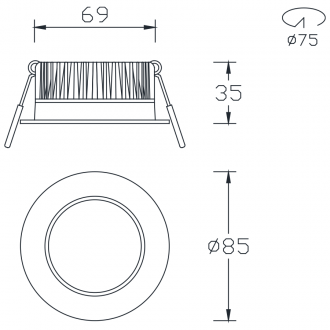

참고 도면이미지
