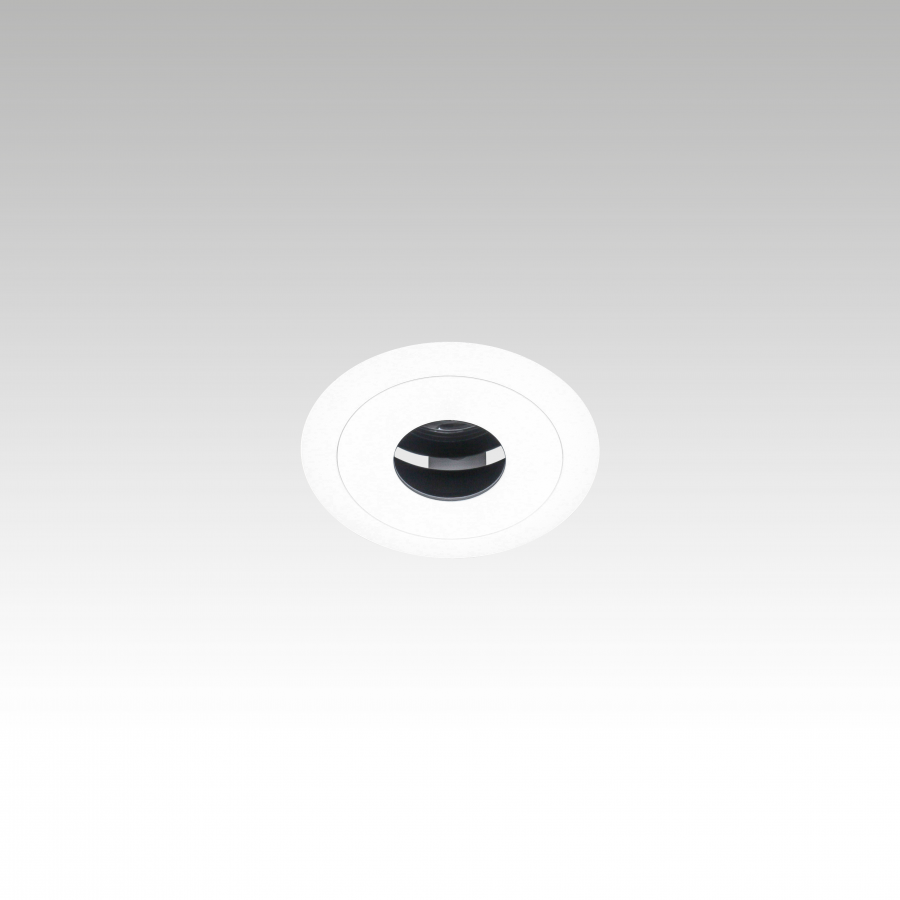

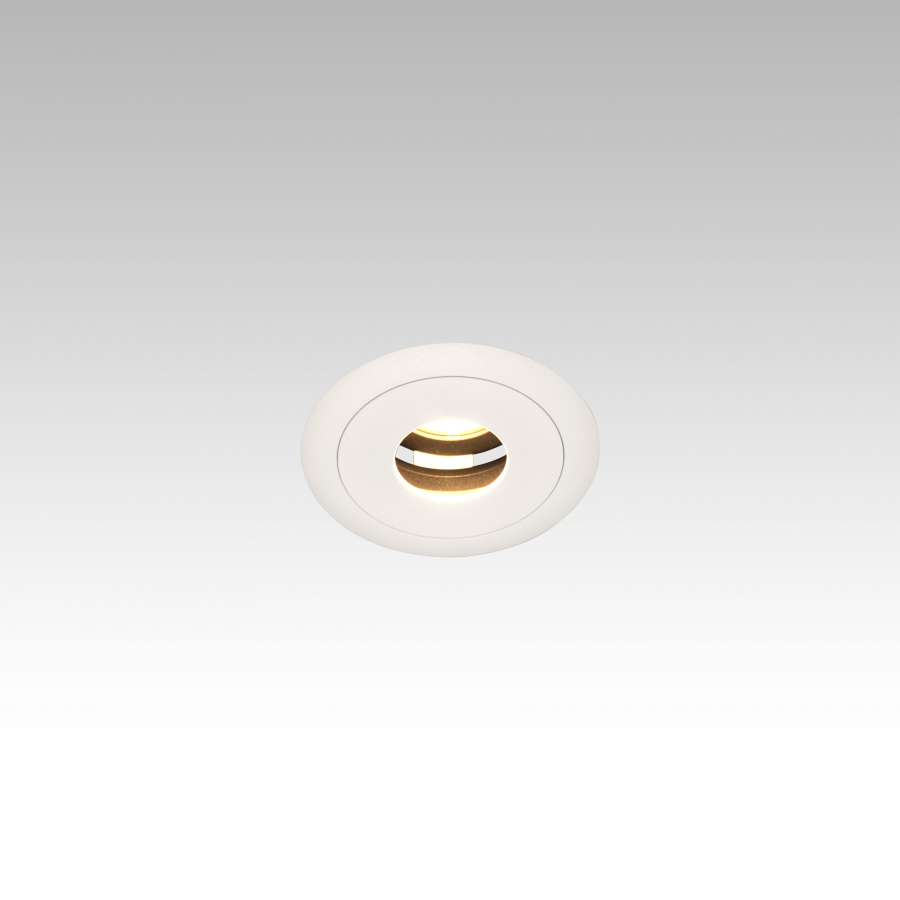

Coxx 85Ø Pinhole

상품 선택옵션 0 개, 추가옵션 0 개

02-352
■ SPECIFICATION

MATERIAL

AL. Die-Casting

REFLECTOR

LENS(PMMA)

BEAM ANGLE

15° / 24° / 36°

BODY COLOR

WHITE

LIGHT SOURCE

LED COB(CHIP ON BOARD)

COLOR RENDERING INDEX

80 Ra / 90 Ra

COLOR TEMPERATURE

2700K/ 3000K/ 3500K/ 4000K/ 5700K

INPUT VOLTAGE

220-240V AC , 50/60Hz

OUTPUT POWER

6W / 8W / 10W / 15W

OUTPUT VOLTAGE

36V DC

OUTPUT CURRENT

200mA / 250mA / 350mA

SYSTEM EFFICIENCY

100 lm/w(3000K)

LUMINOUS FLUX

800 lm / 1000 lm / 1500 lm

OP. TEMPERATURE RANGE

-20 to +40

LIFE TIME

Up to 50,000 hours

SMPS OPTION

ON OFF/ DALI / TRIAC / 0-10V / 1-10V

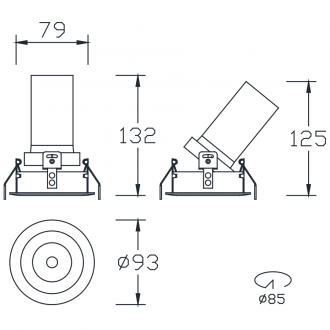

참고 도면이미지
