Pio Ø75 Pinhole

상품 선택옵션 0 개, 추가옵션 0 개

02-343
■ SPECIFICATION

MATERIAL

AL. Die-Casting

REFLECTOR

AL. Anodized

BEAM ANGLE

24° / 36° / 50°

BODY COLOR

WHITE

LIGHT SOURCE

LED COB(CHIP ON BOARD)

COLOR RENDERING INDEX

80 Ra / 90 Ra

COLOR TEMPERATURE

2700K/ 3000K/ 3500K/ 4000K/ 5700K

INPUT VOLTAGE

220-240V AC , 50/60Hz

OUTPUT POWER

6W/ 8W/ 10W/ 15W/ 20W/ 30W

OUTPUT VOLTAGE

36V DC

OUTPUT CURRENT

250mA / 350mA / 500mA / 700mA

SYSTEM EFFICIENCY

100 lm/w(3000K)

LUMINOUS FLUX

1000 lm / 1500 lm / 2000 lm / 3000 lm

OP. TEMPERATURE RANGE

-20 to +40

LIFE TIME

Up to 50,000 hours

SMPS OPTION

ON OFF/ DALI / TRIAC / 0-10V / 1-10V

ACCESSORY

Honeycomb / Softening PC cover

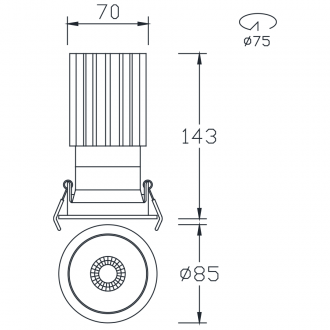

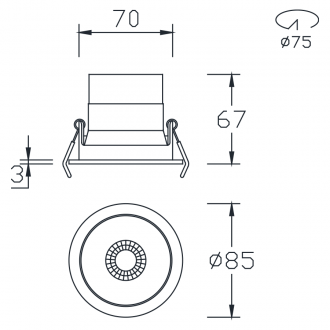

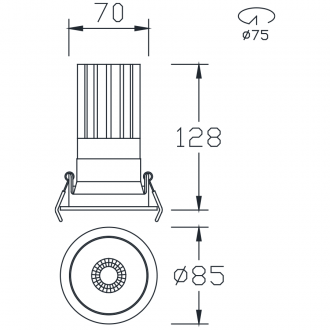

참고 도면이미지
