상품간략정보 및 구매기능

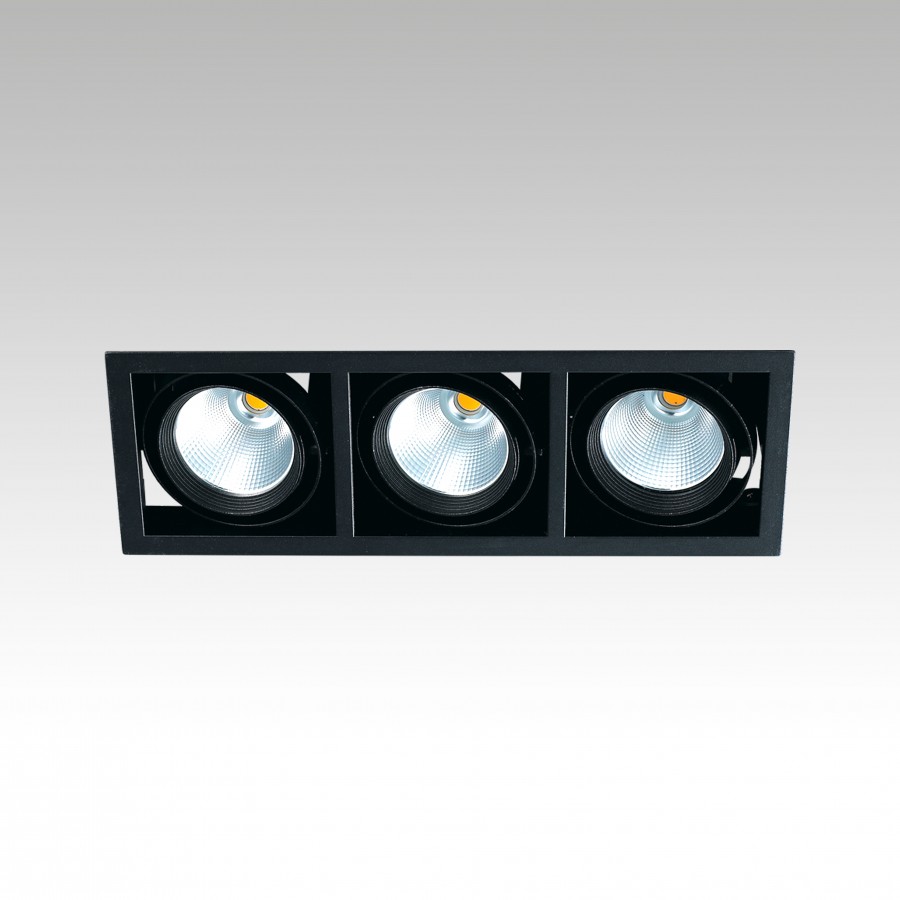

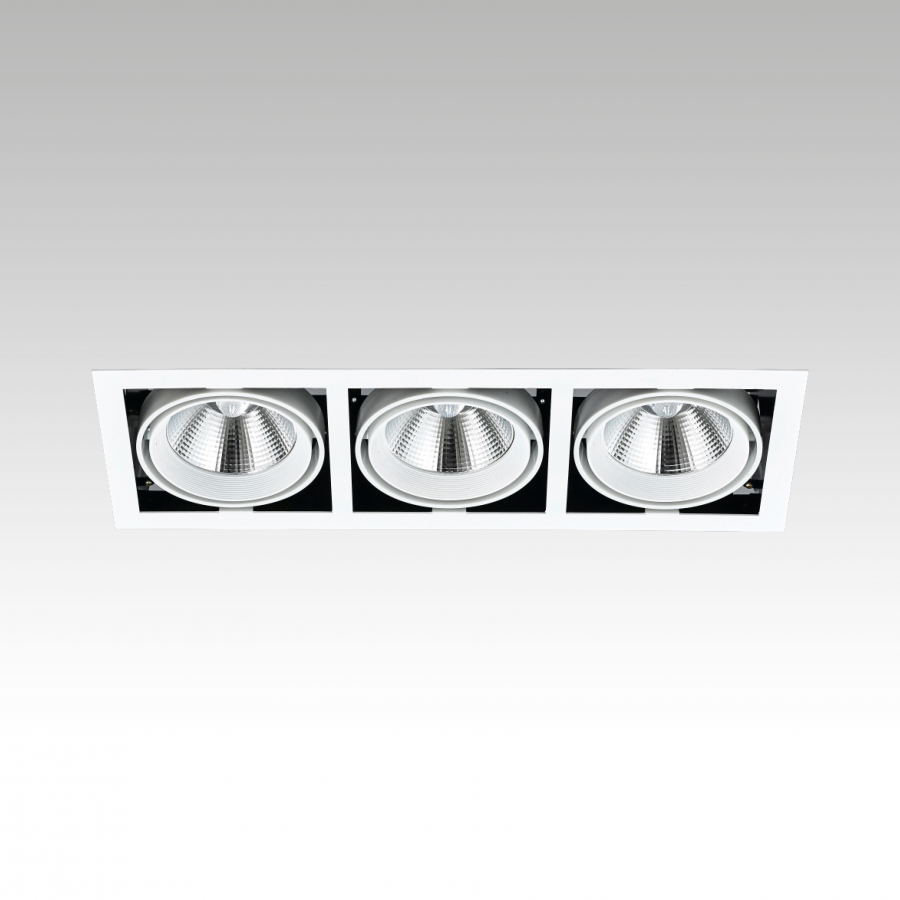

COB 스틸 3구

상품 선택옵션 0 개, 추가옵션 0 개

01-016
■ SPECIFICATION

MATERIAL

AL. Die-Casting / STEEL

REFLECTOR

AL. Anodized

BEAM ANGLE

24°

BODY COLOR

BLACK / WHITE

LIGHT SOURCE

LED COB(CHIP ON BOARD)

COLOR RENDERING INDEX

80 Ra / 90 Ra

COLOR TEMPERATURE

3000K / 4000K / 5000K / 5700K

INPUT VOLTAGE

220-240V AC , 50/60Hz

OUTPUT POWER

20W / 30W / 40W

OUTPUT VOLTAGE

36V DC

OUTPUT CURRENT

500mA / 700mA / 900mA

SYSTEM EFFICIENCY

100 lm/w(3000K)

LUMINOUS FLUX

2000 lm / 3000 lm / 4000 lm

OP. TEMPERATURE RANGE

-20 to +40

LIFE TIME

Up to 50,000 hours

OPTION

DALI / TRIAC / 1-10V DIMMING

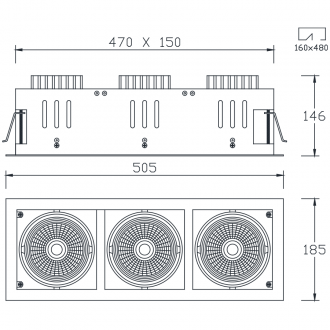

참고 도면이미지
