Shiny

상품 선택옵션 0 개, 추가옵션 0 개

04-537
■ SPECIFICATION

MATERIAL

AL. Die-Casting

REFLECTOR

AL. Anodized

BEAM ANGLE

15° / 24° / 36°

BODY COLOR

BLACK / WHITE

LIGHT SOURCE

LED COB(CHIP ON BOARD)

COLOR RENDERING INDEX

80 Ra / 90 Ra

COLOR TEMPERATURE

3000K / 4000K / 5000K

INPUT VOLTAGE

220-240V AC , 50/60Hz

OUTPUT POWER

10W / 15W

OUTPUT VOLTAGE

220-240V AC , 50/60Hz

OUTPUT CURRENT

SMPS included

SYSTEM EFFICIENCY

100 lm/w(3000K)

LUMINOUS FLUX

1000 lm / 1500 lm

OP. TEMPERATURE RANGE

-20 to +40

LIFE TIME

Up to 50,000 hours

OPTION

TRIAC DIMMING

TRACK OPTION

1-CIRCUIT / 3-CIRCUIT

ACCESSORY

Honeycomb

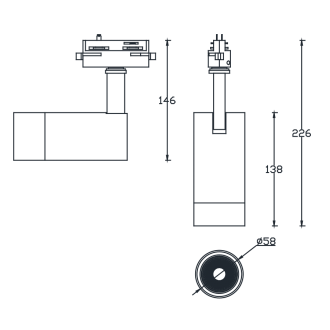

참고 도면이미지
