Bonito Ø85

상품 선택옵션 0 개, 추가옵션 0 개

02-318
■ SPECIFICATION

MATERIAL

AL. Die-Casting

REFLECTOR

AL. Anodized

BEAM ANGLE

24°

BODY COLOR

WHITE

LIGHT SOURCE

LED COB(CHIP ON BOARD)

COLOR RENDERING INDEX

80 Ra / 90 Ra

COLOR TEMPERATURE

2700K / 3000K / 4000K / 5700K

INPUT VOLTAGE

220-240V AC , 50/60Hz

OUTPUT POWER

8W / 10W / 15W

OUTPUT VOLTAGE

36V DC

OUTPUT CURRENT

200mA / 250mA / 350mA

SYSTEM EFFICIENCY

100 lm/w(3000K)

LUMINOUS FLUX

800 lm / 1000 lm / 1500 lm

OP. TEMPERATURE RANGE

-20 to +40

LIFE TIME

Up to 50,000 hours

OPTION

DALI / TRIAC / 1-10V DIMMING

ACCESSORY

Honeycomb / Softening PC cover

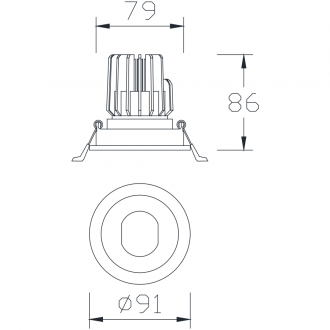

참고 도면이미지
